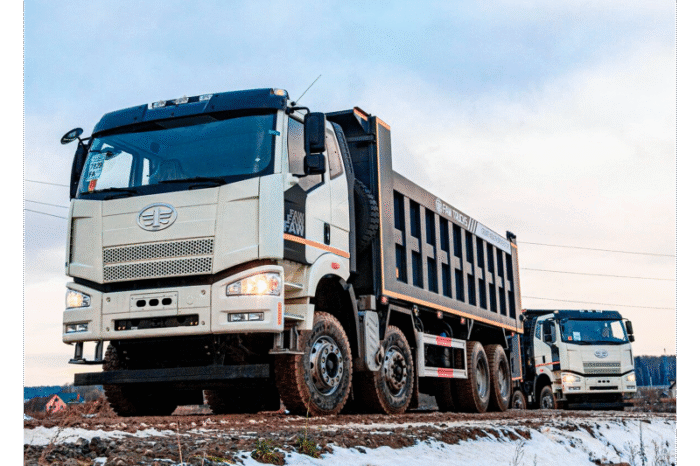

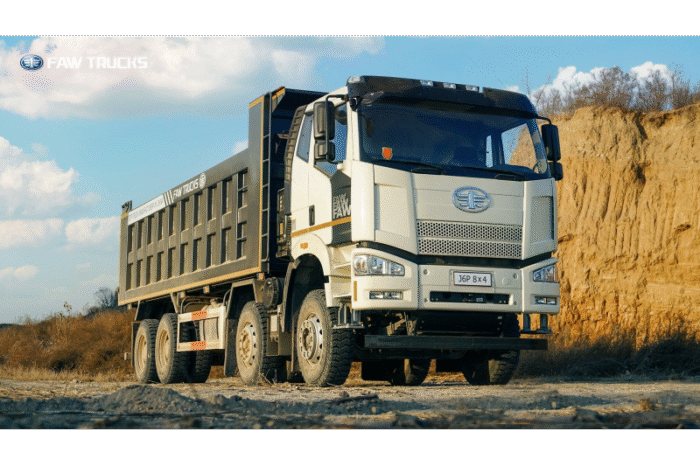

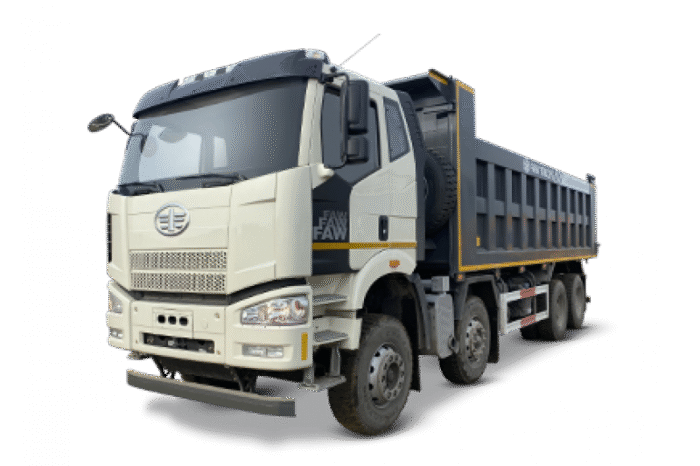

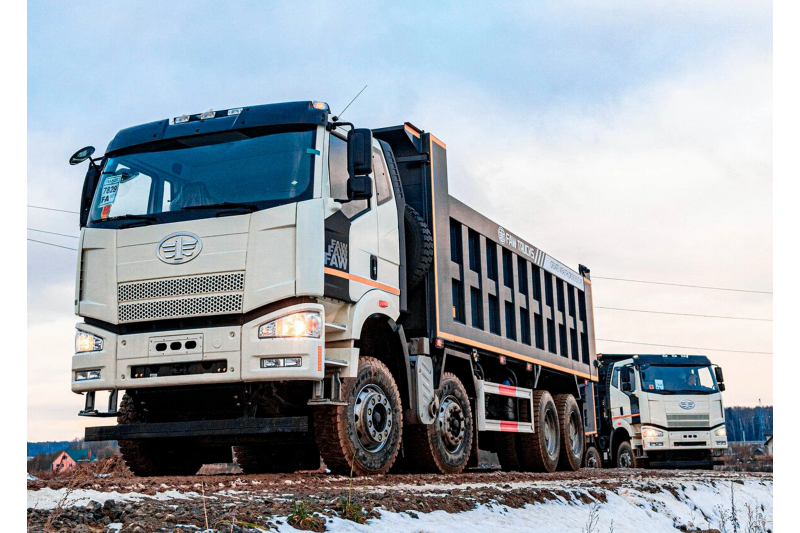

Dump truck CA3310 8×4

$9,050,000.00

The ergonomic FAW J6 dump truck is a model with high load capacity and excellent maneuverability, designed for use in the city with a limit on the axle load. With low operating costs, the FAW flagship line dump trucks are distinguished by optimal characteristics of power, efficiency and reliability.

Compare
Add to wishlist
Category:
Description

Characteristics

Wheel arrangement:8×4
Gear ratio:5.77 double spaced with hub planetary gear
Modification:CA3310P66K24T4E5
Year:2022
Maximum torque (Nm):1900 at 1300 rpm
Body volume:26 cubic meters
Power supply system:Electronic, BOSH EDC 17 – E5
Steering:TRW FAWER, power steering
Clutch:SACHS / YIDONG, dry single-disc, hydraulically driven and pneumatically boosted
Bridges:Main gear: double, spaced gear ratio 5.769
Brake system:Pneumatic dual-circuit drive with division into circuits for the front and rear axles, with ABS
Dump truck platform:Body volume – 26 cubic meters. Body lift angle – 52 degrees. Front hydraulic lift
Hydraulic lift:Front hydraulic lift
Air filter:Two-stage, with the first stage being of the vortex type (dry)
Fuel tank capacity:400 l.
Maximum speed:90 km/h

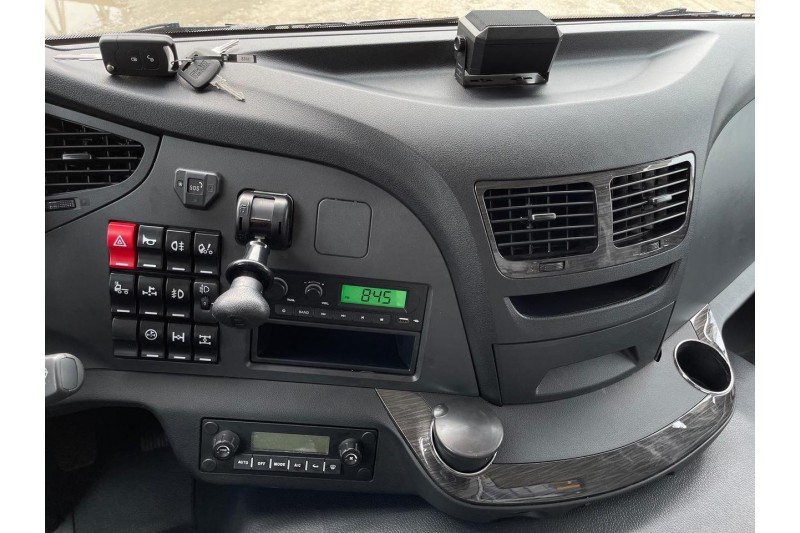

Cabin type:New FAW J6, all-metal, two-door, two-seater, forward-folding, with a berth
